2X2 Premium LED Troffer Center Basket 30 Luminaire Watts DIM MV - DLC

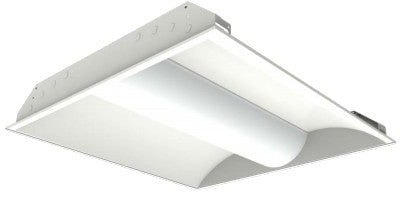

The premium-performance CBLED22 is a 2’ x 2’ LED center basket luminaire, which offers industry-leading lumens per watt (LPW), and which is DLC Premium listed. The CBLED22 is designed as a direct replacement for 2’ x 2’ fluorescent luminaires installed in grid ceilings. It is designed to deliver general ambient lighting in a variety of indoor settings, perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

Features:

• Available in 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures.
• Long-life LEDs provide 81,000 hours of operation with at least 70% of initial lumen output (L70).
• Provides 3,709 luminaire lumens (124 lumens per watt, LPW) at 3000k, 3,766 luminaire lumens (126 LPW) at 4000k, and 3,823 luminaire lumens (128 LPW) at 5000k.
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit. Fits in standard 2’ x 2’ grid ceilings.
• Standard earthquake clips provide secure installation in grid ceilings.

specifications:

• Model: CBLED22-30W-3KMV-DLCPRM-BES, CBLED22-30W-4KMV-DLCPRM-BES, CBLED22-30W-5KMV-DLCPRM-BES
• Color Temperature: 3000k , 4000k, 5000k
• CRI 1: > 80 , > 80 , > 80
• Luminaire Lumens: 3,709 , 3,766 , 3,823
• Luminaire Watts: 30, 30, 30
• Lumens / Watt : 124 , 126 , 128
• Input Voltage: 120-277, 120-277, 120-277
• Input Current (A):
• 120V: 0.25, 0.25, 0.25
• 240V: 0.13, 0.13, 0.13
• 277V: 0.11 , 0.11 , 0.11
• Power Factor: > 90%, > 90%, > 90%
• THD2: < 20%, < 20%, < 20%
• L70Hours3: 81,000, 81,000, 81,000

Warranty & Listings:

• UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -25°C to 50°C (-13°F to 122°F).
• DLC Premium listed
• Complies with FCC Part 15, part B
• 5-year warranty of all electronics and housing.
