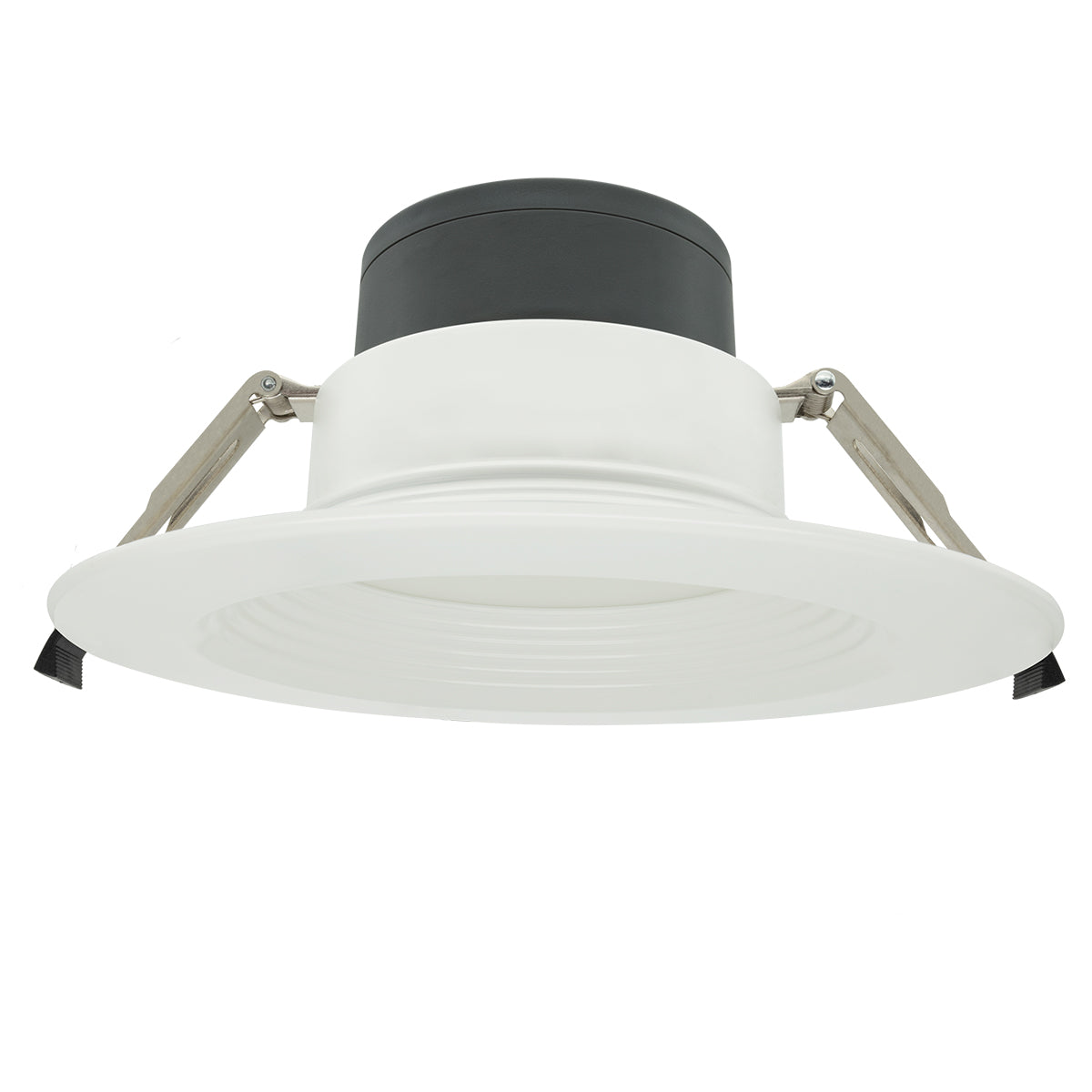

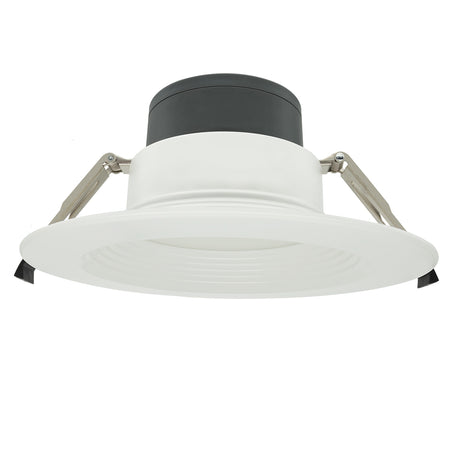

8" LED Architectural Downlight

The CDR8 Series 8” architectural downlight features a sleek white baffle
trim and an integrated LED light engine in a compact design. Designed to
seamlessly fit into most standard 8” recessed housings, this versatile solution
is perfect for both retrofit and new construction projects with no extra housing

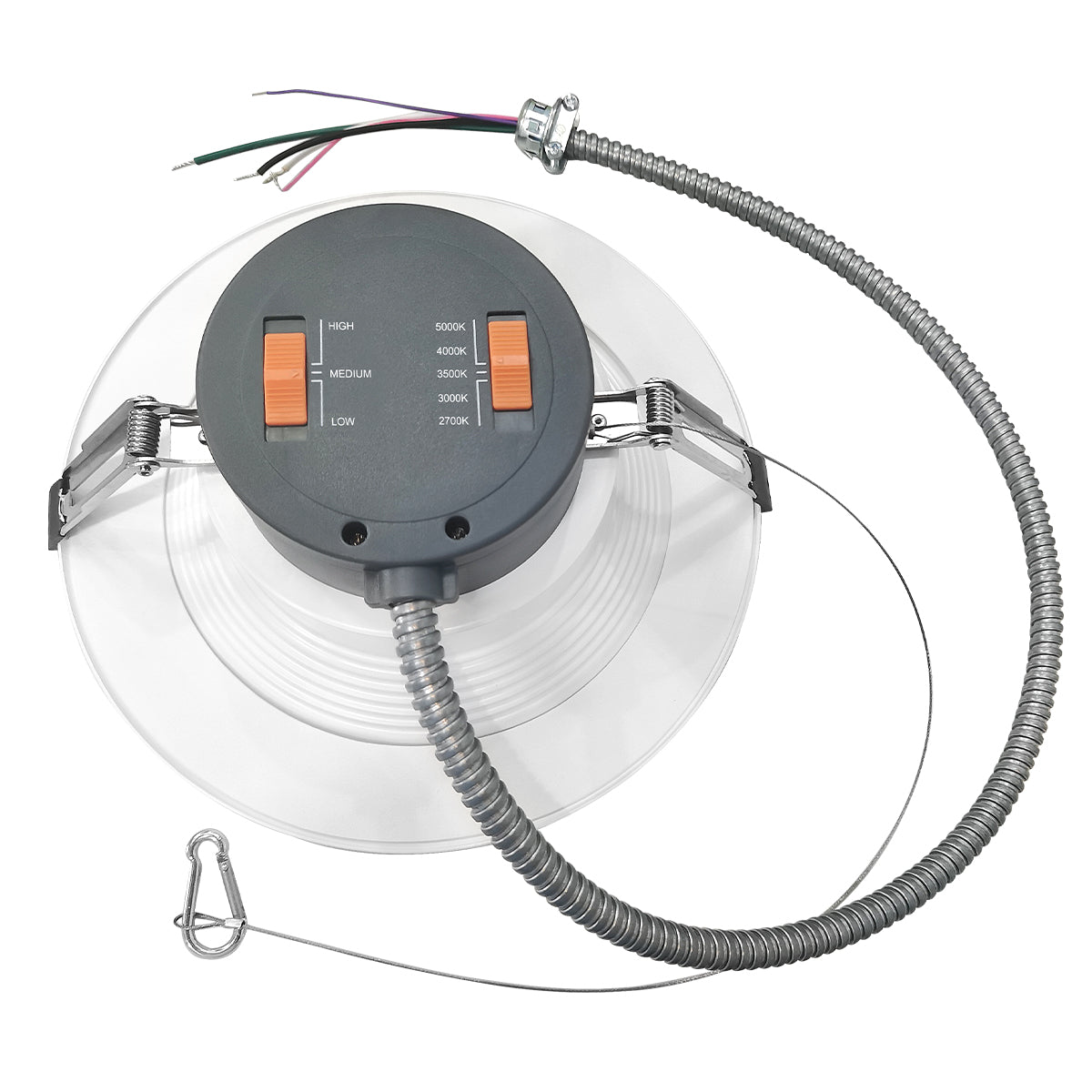

required. Enjoy the added convenience of field-switchable color and power
selection, making it an adaptable and efficient lighting choice for any space.

SPECIFICATIONS
Construction:
• Compatible with 8.10” ceiling cut-outs and 8” mounting frames
• Polycarbonate driver housing and aluminum reflector
• Easy installation with spring-action housing clips
Optics/LEDs:
• Field-switchable between 30W, 40W and 50W (3,000lm, 4,000lm, 5,000lm)
• Field-switchable color temperature between 2700K, 3000K, 3500K, 4000K
and 5000K CCT
• 50° Beam angle
• CRI > 90
• L70 > 100,000hrs
Electrical:
• 0-10V Dimming
• Saves up to 75% energy compared to incandescent sources
• EN61000-4-5 surge protection (1kV)
• Power factor ≥ 0.90 with input
• 120V-277VAC, 50/60Hz
• Operating temperature: -20°C to 45°C (-4°F to 113°F)
Testing & Compliance:
• cETLus Listed for Wet Locations
• IC Rated, inherently protected, access above ceiling required
• Energy Star certified
• Title 24 JA8 compliant
• Complies with FCC Part 15, class B
