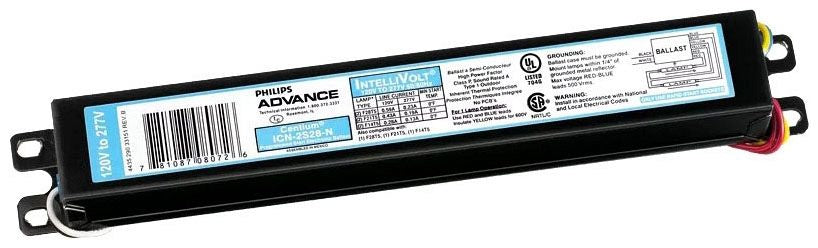

Advance ICN2S54N35I Electronic Ballast 2 Lamp F54T5/Ho 120-277V
Regular price
$44.99
Couldn't load pickup availability
| UPC: | 78108711056 |
| Lamp Wattage: | 54 Watt |
| Input Voltage: | 120 to 277 Volt AC |
| Input Current: | 0.43 to 1 Amp |
| Input Power: | 120 Watt at 120 Volt, 116 Watt at 277 Volt |
| Frequency Rating: | 50/60 Hertz |
| Power Factor: | 0.98 |
| Ballast Factor: | 1 |
| Maximum THD: | 10 Percent |
| Wiring: | Series |
| Minimum Starting Temperature: | -20 Deg F |
| Catalog Number: | ICN2S54N35I |
| Size: | 9.5 Inch Length x 1.3 Inch Width x 1 Inch Height |
| Approval: | UL, CSA, CEC |
| Additional Information: | RoHS Compliant; Includes N-Can; Housing Material Metal; Lamp Current Crest Factor 1.7; Wire Type Solid; Wire Size 18 AWG |
| Brand Name: | Philips |
| Model: | ICN |
| Type: | High Frequency |
| Starting Type: | Programmed |
| Circuit Type: | High Output, HPF |
| Lamp Type: | F54T5/HO |
| Number of Lamps: | 2 |
| CATALOG DESCRIPTION: | THE RIGHT FIT FOR YOUR HIGH-OUTPUT APPLICATIONS PROGRAMMED START OPERATION - HELPS TO EXTEND LAMP LIFE IN FREQUENT SWITCHING APPLICATIONS SUCH AS OCCUPANCY SENSORS OR DAYLIGHT HARVESTING;STARTING CAPABILITY AT -20F - SUITED FOR COLD TEMPERATURE APPLICATIONS (54W MODELS ONLY);HIGH-LOW SWITCHING - ONE BALLAST CAN EASILY SWITCH FROM 4-LAMP TO 2-LAMP FIXTURES NO MATTER WHAT THE CONDITIONS REQUIRE, OPERATING AT A VARIETY OF LINE VOLTAGES BETWEEN 120V TO 480V, WHETHER LOCATED IN HIGH AMBIENT TEMPERATURE ENVIRONMENTS (REQUIRING A 90 C RATING) OR NOT, OUR FAMILY OF PHILIPS ADVANCE CENTIUM BALLASTS ARE IDEAL FOR A WIDE VARIETY OF APPLICATIONS. INTELLIVOLT TECHNOLOGY (120-277V);LAMP EOL PROTECTION;UL TYPE CC RATED - ANTI-ARCING CIRCUITRY PROVIDES GREATER FLEXIBILITY TO MEET END-USER APPLICATION REQUIREMENTS RETAIL, COMMERCIAL, INSTITUTIONAL AND INDUSTRIAL APPLICATIONS INCLUDING; SCHOOLS, OFFICES, SPECIALTY & DEPARTMENT STORES, WAREHOUSES AND MANUFACTURING |
| Category: | Electronic Linear Fluorescent Ballasts |
| Full Technical Description: | Centium Type; 9.5 Inch Length X 1.3 Inch Width X 1 Inch Height Size; -29 Deg C min. Starting Temperature; 10 Percent Max. THD; 50/60 Hertz Frequency Rating; UL, CSA, CEC, FCC, NOM Approval; 2 Lamp(S); F54T5/Ho Lamp Type; 54 Watt Lamp Wattage; 120 to 277 Volt AC Input Voltage |
| Manufacturer: | Philips USA |
| Manufacturer Brand: | Philips Advance |
| Product Description: | Advance ICN2S54N35I Electronic Ballast 2 Lamp F54T5/Ho 120-277V |
| Sub-Category: | Fluorescent Electronic Ballast |
| UNSPSC: | 39101901 |
| UPC 12 Digit: | 781087110560 |
| Unique Product Key: | 5619696 |
