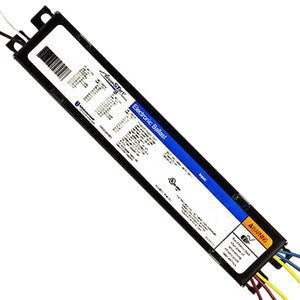

B132IUNVHP-N000I - 1 Lamp - F32T8 Electronic Ballast - 120/277v - Instant Start

Triad Fluorescent Electronic Ballast, 32 W T8 Lamp, Wattage: 30 W, Voltage Rating: 108 - 305/120 - 277 VAC, Ballast Factor: 0.88, Amperage Rating: Line: 0.25 A At 120 V, 0.11 A At 277 V, Start Type: Instant, 1 Lamps, High Frequency, Frequency Rating: 50/60 HZ, Minimum Starting Temperature: -18 DEG C, Total Harmonic Distortion: >10%, Power Factor: <0.98 At 120 V, <0.98 At 277 V, Length: 9-1/2 IN, Width: 1.3 IN, Height: 1 IN, Ansi Code: C82.11-1993, C62.41-1991, Mounting: 8.9 IN Length, Color: Black, Temperature Rating: 40 DEG C Ambient, Wire Size: 18 AWG, Standards: UL listed (type HL), FCC part 18 (class A) for EMI and RFI non-consumer limits, C/US UL listed, NEMA premium.

Features

• Active power factor correction
• Anti-striation circuitry
• 18 FT maximum lead length remote mounting
• Less than 1.7 crest factor
• Smaller cross section/size optimizes luminaries for T8 lamp size and optics, ideal for thin profile fixtures
• Lighter weight: easier to install, less shipping weight, ideal for suspended fixtures
• Standard mounting footprint and wiring for easy replacement, fits all standard T12 and T8 fixtures
• Parallel lamp operation keeps other lamps functioning when one lamp fails
• Instant start operation for maximum energy savings
• High performance
• Parallel lamp wiring circuit
• "A" sound rating

Specifications

• Item Name: Fluorescent Electronic Ballast
• Type: High Frequency
• Lamp Type: 32 W T8
• Wattage: 30 W
• Voltage Rating: 108 - 305/120 - 277 VAC
• Amperage Rating: Line: 0.25 A At 120 V, 0.11 A At 277 V
• Frequency Rating: 50/60 HZ
• Ballast Factor: 0.88
• Start Type: Instant
• Minimum Starting Temperature: -18 DEG C
• Total Harmonic Distortion: >10%
• Power Factor: <0.98 At 120 V, <0.98 At 277 V
• Dimmable: No
• Number Of Lamps: 1
• Length: 9-1/2 IN
• Width: 1.3 IN
• Height: 1 IN
• Color: Black
