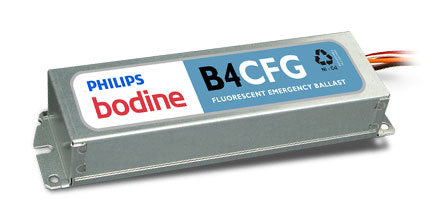

Bodine B4CFG Emergency Fluorescent Ballast 1250 Lumens - 1 Lamp
Regular price
$231.42
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
Product Description:
How would you feel if your fluorescent lighting would suddenly shuts down at a very inopportune time? Your project relies on brilliant radiance and you need a solution that would produce, even during a power outage. Our Bodine brand emergency ballasts will provide your lighting with power in the event of electrical failure so that you won’t be completely left in the dark.
Whether it’s in wet or damp locations, or indoors under a factory roof, the B4CFG model will back up your lighting system for a duration of 90 minutes. It operates brand new or currently installed compact fluorescent and T5 lamps with dual voltage capacity of 120/277. But wait, this ballast is also functional on AC power as well. This simply means that once power is restored the device will recharge by switching back to emergency mode.
Features:
Operates 1 lamp T5 and CFL fixtures
Emergency Back Up Power of 90 Minutes
Lumen Output: 1250
Full Warranty: 5 Years
Wattage Capacity: 13 W to 42 W
Battery Operation: Nickel Cadmium (NiCad)
Recharge Time: 24 Hour
Application:
The B4CFG can be installed on top, inside of, or remotely to a CFL fixture with a conduit (included). Remote installation is recommended at a maximum of 6 feet in distance from lamp. For simple visual check up of the charging indicator light and for easy testing, the test/monitor plate can be installed near the fixture.
External Specifications:
This emergency ballast can be used either with switched or unswitched mode of fixture. If a switched fixture is used, an unswitched live wire must be connected to the emergency ballast for feeding the emergency ballast through AC circuit. The B4CFG Emergency Ballast can be installed inside or on top of the fixture.
Electrical Specifications:
With a capacity dual voltage of 120/277, this ballast works with electrical current as low as 300 mA with power consumption of just 4 Watts. It also includes of high-temperature, maintenance-free nickel-cadmium battery, charger and electronic circuitry
Compliance:
Exceeds emergency standards of NEC
UL Listed
CSA Certified
Dimensions:
Length: 9.4”
Width: 2.4”
Height: 1.5”
Weight: 3 lbs.
