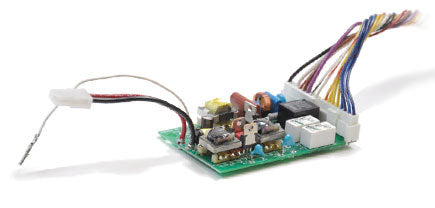

Bodine CF94GU Emergency Ballast 300-750 Lumens - CFL 4-pin
Regular price
$106.99
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
Product Description:
The CF94GU is UL component recognized for factory installation only. Therefore, it is only sold directly to lighting fixture manufacturers for installation in their fixtures at their factory. However, if your inquiry is for replacement only (not a new installation), we can accept a replacement order. The order MUST be marked as “Replacement only”. The CF94GU is available in various battery configurations. Please call us to specify the battery style needed. The battery configurations are shown at the bottom of the specification sheet.
Our CF94GU ballast is an open circuit designed device that provides emergency power for linear fluorescent lighting fixtures. It features a maintenance free NiCad battery and a LED charging indicator light.
This emergency lighting device ballast serves its purpose during a blackout by immediately switching to emergency mode for up to 90 minutes. Once AC power is restored, it then automatically returns to its initial charging mode. To prevent false electrical tripping, there is a 3-5 second delay that occurs before regular operation.
Operates 4-pin (twin, quad or triple twin tube) Compact Fluorescent (CFL) lamps without an integral starter. With a temperature rating of 0°C (32°F ) - 55°C (131°F), this device is good for application in cold weather.
Features:
Open circuit design
One lamp emergency
illumination for 4-pin fluorescent lamps (without integral starter)
End-of-lamp-life compatible
Universal Input Voltage
Illumination Time: 90 minutes
Initial Output: 300 - 750 Lumens
Dual Input Voltage: 50 or 60 Hz, 120/277 VAC
AC Input Current: 70 mA
AC Input Power Rating: 5.5 Watts
Operating Temperature: Not below 0°C
Test Switch: Single Pole
Recharge Time: 24 Hour
Application:
The CF94GU will not affect normal lamp operation but in the case of an emergency, it will provide up to 90 minutes of light for your indoor or outdoor facility. It includes a maintenance-free NiCad battery, a charger with test switch (LED light indicator), and electrical circuit board. This ballast is also great for mounting within sealed and gasketed fixtures.
External Specifications:
This compact sized ballast only weights 1.6 lbs and features a vertical and horizontal mounting center. There is also a test switch that features a LED indicator light to signal if charged.
Electrical Specifications:
It is UL Component compliant for factory installation while having an initial lumen output in the range of 300-750. The device’s voltage capacity is universal 120-277V with AC wattage input of 5.5.
Compliance:
UL 924 (‘Emergency Lighting and Power Equipment)
Life Safety Code (NFPA–LSC),
National Electrical Code (NEC)
UL Listed for 90-minute requirements.
If you’re not sure whether or not this ballast is the right one for your fluorescent lighting fixture, contact a member of our expert staff immediately!
