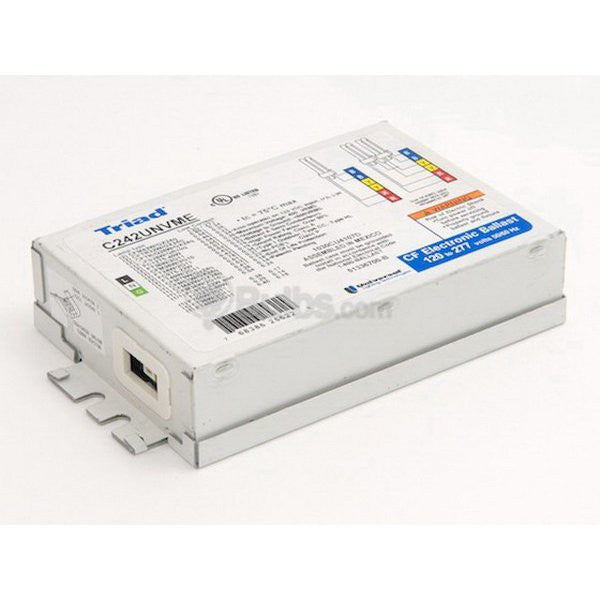

C242UNVMES - 2 Lamp - 42W CFL Electronic Ballast - 120/277v - Program Rapid Start
Regular price
$24.50
Couldn't load pickup availability
Product Details
Universal Triad CFL electronic fluorescent ballast finds wide range of application in COMPACT EL. It measures 4.940 Inch x 2.980 Inch. Programmed start type ballast has a current rating of 0.76 Amp. It serves 2 lamps effectively.
Specification
- Dimension: 4.940 Inch Length x 2.980 Inch Width
- Multi exit with Studs (2 Inch on center)
- Auto-reset shutdown circuit per NEMA recommendations
- Both lamps should be replaced at end of life
- Lamps relight upon insertion in socket
- Metal can construction
- 167 deg F maximum case temperature
- Sound rated A
Universal Triad CFL electronic fluorescent ballast finds wide range of application in COMPACT EL. It measures 4.940 Inch x 2.980 Inch. Programmed start type ballast has a current rating of 0.76 Amp. It serves 2 lamps effectively.
Specification
- Color/Finish: White
- Dimmable: No
- Dimension: 4.940 Inch Length x 2.980 Inch Width x 1 Inch Height
- Amperage Rating: 0.76 Amp
- Application: For Compact Fluorscent Lamp
- Frequency Rating: 50/60 Hz
- Mounting: Remote
- Minimum Starting Temperature: -18 deg F
- Item: Electronic Ballast
- Number Of Lamps: 2
- Start Type: Programmed Rapid
- Total Harmonic Distortion: <10%/<15%
- Voltage Rating: 120 - 277 Volt
- Width 2.980
