2X2 LED Troffer Center Basket 40W 4K DIM MV - DLC

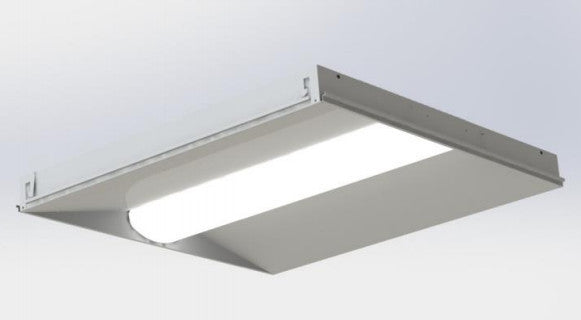

The BCBLED22 is a 2’ x 2’ LED center basket luminaire, which is designed as a direct replacement for 2’ x 2’ fluorescent luminaires installed in grid ceilings. The BCBLED22 is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES:

• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.
• Long-life LEDs provide 52,000 hours of operation with at least 70% of initial lumen output (L70).
• Provides 4,718 luminaire lumens (110 lumens per watt) at both 4000k and 5000k.
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit. Housing fits in standard 2’ x 2’ grid ceilings.

SPECIFICATION:

• Color Temperature: 4000k
• CRI 1: > 80
• Luminaire Lumens: 4,718
• Luminaire Watts: 43
• Lumens Per Watt: 100, 110
• Input Voltage: 120-277(50-60Hz)
• Input Current (A): 120V: 0.36, 240V: 0.18, 277V: 0.16
• Power Factor: > 90%
• THD2: < 20%
• L70 Hours3: 52,000

WARRANTY & LISTINGS:

• ETL approved for damp locations and to relevant U.L. standards (-30 C to 50 C / -22 F to 122 F).
• DLC approved.
• Complies with FCC Part 15, Class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEC 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).
• 5-year warranty
