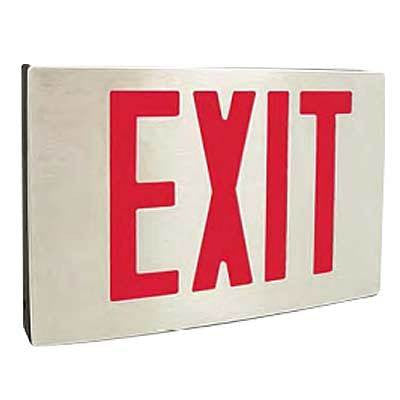

EXIT-NY-CA Series Cast Aluminium LED Exit Sign 120/277 Volt

The EXIT-NY-CA Series New York City Cast Aluminum LED Exit Sign offers a high level of design appeal with increased durability. This variation of the standard cast aluminum series is New York City approved for use throughout the five boroughs of NYC. New York City exit signs feature 8" tall, 1" wide red letters and is approved for use by the New York City Building Department.

The sturdy die-cast housing is brushed to create an attractive finish. Efficient LEDs are installed within the aluminum housing and produce bright and even EXIT face illumination. Aluminum exit signs are popular for all types of commercial applications, from office to retail to institutional use. NYC exit signs are even available for oudoor use.

EXIT-NY-CA Series aluminum exit signs can be top, side, or back mounted with the included universal mounting canopy. This model ships "universal", meaning it comes with two EXIT face-plates and one back-plate so it can be used for both single and double-sided exit sign applications. A 90 minute battery backup is standard and all models are UL Listed for the USA. Operates using 120 or 277v AC power. Damp location rated.

Features

• New York City Approved
• Attractive – Brushed aluminum housing creates classy and stylish look
• Durable – Die-cast construction can handle moderate abuse
• Efficient - consumes less than 5 watts AC electricity at all times
• Push-to-test button with LED charging indicator
• UL 924 Listed for the United States
• Five year warranty

Application
The EXIT-NY-CA Series exit sign is ideal for indoor commercial applications. The universal mounting canopy can be used to install this aluminum exit sign onto normally inflammable surfaces. Requires 120 or 277 volt electricity. This NYC exit sign is highly popular for a wide range of applications including office, residential, and institutional use.

External Specifications
Housing is made from die-cast aluminum and brushed to a high-end finish. face-plates snap on and off for easy installation and maintenance requirements. Push to test button located on side of unit. This New York exit sign will look great in all types of commercial interiors.

Internal Specifications
Red LEDs located within the housing provide illumination while consuming less than 5 watts of electricity at all times. Battery backup system features nickel-cadmium exit sign battery pack that operates for a minimum 90 minutes after power loss.

Electrical Specifications
120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v. AC lockout prevents battery pack discharge. Low voltage battery disconnect protects the battery pack form being damaged by long discharge periods.

Code Compliance
New York City Approved. UL924 Listed for the U.S. and Canada, CS860, NFPA, Life Safety 101, UL Listed for Damp Locations.

Warranty
Five-year warranty on parts, five-year prorated warranty on battery.

Maintenance Profile
The maintenance required for this unit is monthly and yearly testing of the battery backup system per OSHA regulations. The nickel cadmium battery is replaceable.

Lifespan
8-10 year expected lifespan on all components except replaceable battery (five-year lifespan).

Technology
Battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push button testing is easy and reliable.

Appeal
Combination of durability and high-end appeal create a desirable exit sign for many types of applications. New York City approved exit sign offered at an incredible wholesale price.

Overall Value
High value rating: offered at an affordable price, this model provides an attractive look and durable design.

Installation
This aluminum exit sign is suitable for surface (wall and ceiling) installation. This model is suitable for indoor and damp location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and white(Common) wires for 120v AC connections and the red(277v) and white(Common) wires for 277v AC connections.
