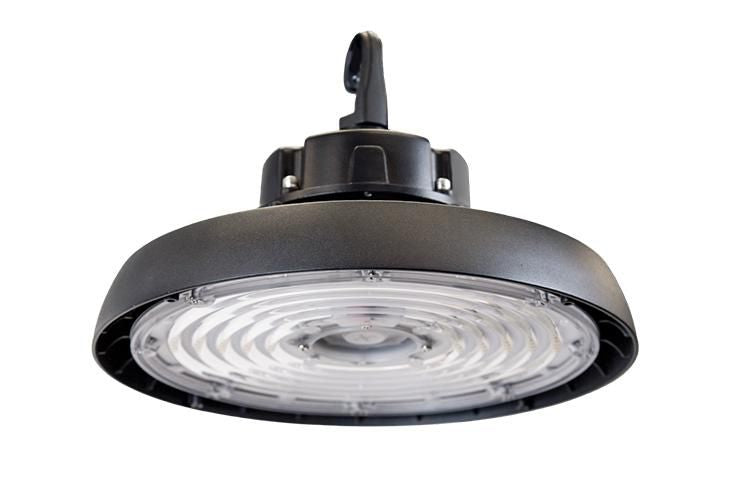

LED Series Round High Bay - Wet Rated



Aesthetically appealing design and round form factor brings a finished loo
k to any commercial or industrial applicationAll fixtures come sensor-ready for field plug-and-playRound shape allows fixture to twist or turn without disrupting installation appearanceIP65 rating to perform in tough environments and withstand moisture, dust and airborne contaminantsField-installable acrylic refractor and conical drop lens allow for uplightEmergency battery back-up kit accessory (120-277V only)



CONSTRUCTION
Housing: Die-cast Aluminum
Lens: Polycarbonate
Paint: Powder coat painted housing.
No glass in housing or lenses
Weight: 6.5 – 9.5lb (2.95 – 4.30kg)
Optical
Assembly:
85° clear optic, Optional polycarbonate refractor,
drop lens, or aluminum reflector

OPTICAL SYSTEM
Lumens: 13,000 – 33,600
Wattage: 95 – 240W
Efficacy: Up to 140 LPW
CCT: 4000K, 5000K
CRI: 80
Glare Rating: UGR<28

ELECTRICAL
Input Voltage: 120 – 277V and 277– 480V
Input Frequency: 50/60Hz
Power Factor (PF)*: >0.9*
Total Harmonic Distortion
(THD)*: <20%*
EMI: FCC CFR Title 47 Part 15, Class A
Surge Protection: 4kV/2kA driver surge
protection couple

CONTROLS
Dimming: Standard 0 – 10VDC,10%
Sensors:
Field-installable 12 – 24V, >50mA tri-level
occupancy and/or ambient light sensor. Max 40ft
mounting height. All units come sensor-ready,
equipped for easy field-install of sensor

LUMEN AMBIENT TEMPERATURE
TYPE TEMPERATURE RATE
OPERATING TEMPERATURE −40°C to +40°C (−40°F to 104°F)
STORAGE TEMPERATURE −40°C to +70°C

MOUNTING

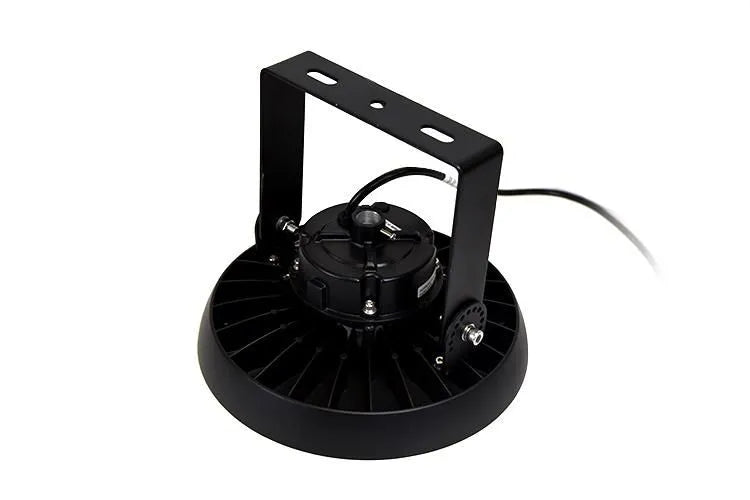

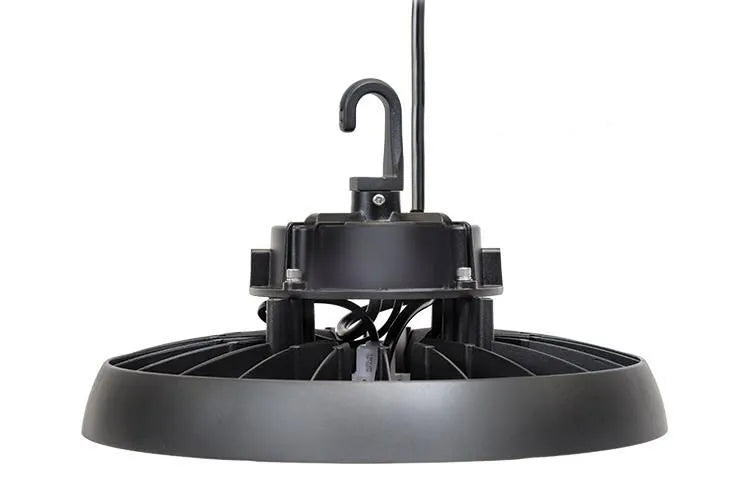

• Typical Mounting: 1/2″ NPT hook included. Wall Mount
bracket and safety tether may be ordered separately
• Cord & Plugs: 6ft cord included (pre-installed)



• UL 1598 Suitable for Wet Locations (IP65)
• Emergency battery back-up kit accessory available
w(120-277V only)
