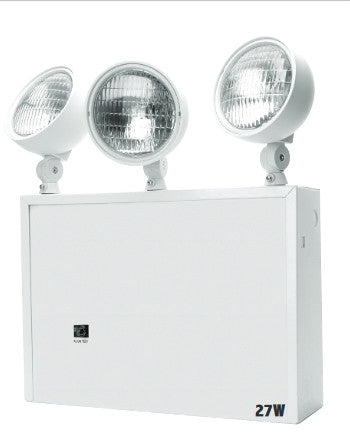

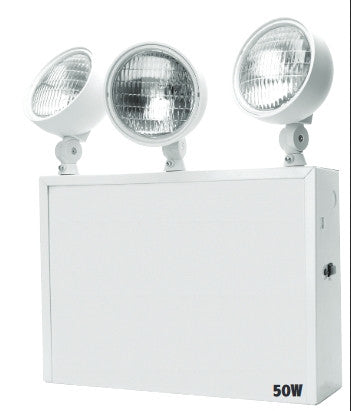

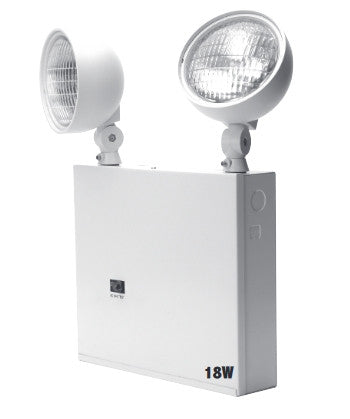

NYC Emergency Light, Steel - 18-68W Capacity - 2 or 3 Heads

The NYC Series Emergency Light is approved for use throughout the five boroughs of New York City. The NYC Series features a 20-gauge steel housing that is powder coated white and outfitted with top-mounted 9-watt halogen lamps. This reliable and powerful emergency light is an affordable, reliable, and compliant solution.

New York City approved emergency lights are certified for use by the New York City Building Department. The steel housing contains a powerful 90-minute battery backup system that powers the lamp heads when power to the building or facility fails. The NYC Series can be outfitted with two or three lamp heads. Connects using 120 or 277v AC electricity.

Features

• Approved for use throughout New York City
• 18-68 watt battery capacity
• 20-gauge steel housing is durable and finished in white
• 9.0-watt lamp heads provide powerful illumination
• Push button and AC charging indicator allows for easy testing of the unit
• Five-year warranty

Application
The NYC Series is ideal for all types of commercial applications, including office, retail, and institutional use. This model surface mounts to normally inflammable surfaces. The emergency lamps are fully adjustable to provide a significant area of illumination.

The Self-Testing option and other options that are offered with the SEL Series decrease maintenance requirements and make the SEL ideal for installations where multiple units are needed or where units are being installed into hard to reach locations.

External
The 20-gauge steel enclosure provides a secure environment for the battery and circuitry of the unit while the lamp heads are mounted securely to the top of the fixture. A black powder coated housing is also available, call to inquire.

The NYC Series allows for remote lamp heads to be connected to the unit and utilizes the unit’s battery backup system. Sturdy magnum terminal connectors enable large gauge wire to be utilized, which increase the flexibility of installation.

Internal
Utilizes 120/277v AC electricity to operate and charge the battery. Comes standard with solid state charging circuitry, low voltage disconnect, AC lockout, and brownout protection.

Lamp Specifications
When ordering the NYC Series as it is configured on this page you will receive a model with (2) PAR36 6-volt, 9.0-watt lamp heads. Higher and more powerful lamp heads are also available; please contact us for more information on outfitting this unit with lamps higher than 9.0-watts.
The PAR36 lamps are standard. Comes standard with (2) lamp heads but can also be ordered with three; or no lamps at all. Other lamp wattage available: 7, 12, 13, and 18.

Battery
When ordering the NYC Series as it is configured on this page you will receive a 6-volt, 18-watt sealed lead calcium capacity battery. Higher capacity batteries are available; please see the category page for a wider selection of models.
The NYC Series comes standard with maintenance free, sealed lead calcium battery that provides at least 90 minutes of emergency illumination power to the unit after AC power to the facility is lost. The recharge time for the battery is 24 hours and the max working temperature for the battery is 122º F. The sealed lead acid battery has an average lifespan of 3 to 5 years.

Code Compliance
New York City Approved. The NYC Series is UL924 Listed and meets NFPA 101 Life Safety Code, NEC, OSHA, IFC, IBC, and ICC.

Options
To purchase a model with one or more of the options below (that are not offered above) please contact us via email or call us at 800-480-0707 for price and availability.
Self-testing - The unit can come with self-diagnostic testing that eliminates monthly and yearly testing of the battery backup system and alerts the user to any problems regarding operational functionality of the unit.
Time-Delay - This option is ideal for installations that are utilizing fluorescent and HID lamps for general lighting purposes. The time delay feature keeps the emergency lights ililluminated for a preset period (usually 15 minutes) after power is restored since fluorescent and HID lighting can take 10-15 minutes to reach full brightness, even after a short power failure.
Cord Set - If you need to plug your emergency light into the wall purchase the cord set option that allows you to connect your emergency light to any standard 120v AC outlet.

Durability
20-gauge steel housing is attractive and sturdy, an compelling combination of form and function.

Appeal
The white powder coat finish on the steel housing creates an aesthetic of power and ruggedness combined with classic design appeal.

Value
The SEL provides powerful emergency lighting illumination and a sturdy steel housing at an affordable, wholesale price.

Additional Information
Please note this is a custom manufactured product. Custom manufactured products cannot be returned or exchanged. Please see return policy or contact us for more information.

Installation
A universal mounting pattern is found stamped into the back of the unit and allows for direct mounting onto standard conduit junction boxes and normally inflammable surfaces. There are key hole slots on either side of the unit for additional mounting possibilities. Conduit knockouts are supplied on the back and sides of the unit, enabling the SEL to receive conduit in a number of different ways.
