Wet location combo - single face led exit/emergency light green/red letters, 120/277v

Overview

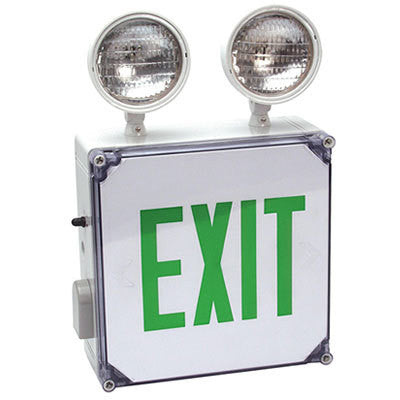

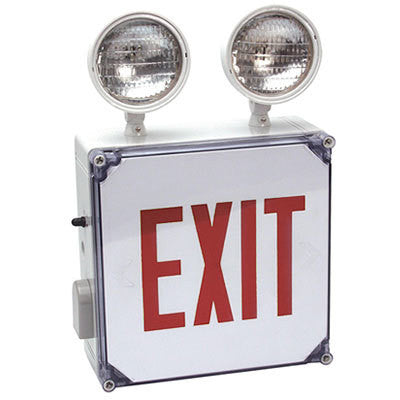

Waterproof Exit Sign Combo

The WP-EXIT-COMBO Series Wet Location LED Exit Sign with Emergency Lights Combo is a weatherproof exit sign with two, top mounted emergency lamps. This model is designed for use oudoors and for other applications where moisture is present, such as wash down areas. The WP-EXIT-COMBO Series features a UV stabilized, impact, moisture, and corrosion resistant ABS plastic enclosure. The lamp heads are PAR style 9.0 watt halogen lamps. This model can handle rain, sleet, and snow. The polycarbonate housing is fully gasket to seal out moisture. For locations that feature freezing temperatures, be sure to purchase the cold location package that comes with an internal battery heater which insures operation in freezing environments.

Combining emergency lights with an exit sign eliminates the need for two separate fixtures, two electrical connections, and the maintenance for two battery backup systems. The WP-EXIT-COMBO Series is UL 924 Listed just like our other exit sign models and comes complete, ready to install. It features powerful green LEDs that provide efficient EXIT illumination, only consuming 5 watts of electricity. A reliable and efficient sealed lead acid battery backup system provides a minimum 90 minutes of emergency power to the unit in case of a power outage.

Quality is not sacrificed for a lower bottom line, all WP-EXIT-COMBO Series wet location exit combos are fire and building code compliant. Operates using 120 or 277 volt electricity and come with a push button allows for easy testing of the battery backup system.
Features

• 2 for 1 - Exit sign with emergency lights
• Weatherproof - Wet Location Rated
• Efficient - LED technology consumes less than 5 watts electricity
• Push-to-test button with LED charging indicator
• Long-lasting - 8 to 10 year EXIT sign solution
• UL924 Listed for the United States
• 5 year warranty

Application

The WP-EXIT-COMBO Series is designed for all applications where moisture is present. This model can be installed indoors or oudoors. The housing is sealed to prevent any element from entering the unit. For freezing temperature applications be sure to purchase the cold location package.
External Specifications

Entire unit is constructed from ABS plastic that is impact/corrosion resistant and UV stabilized. Housing is grey with green letters.
Internal Specifications

Green/Green/Red LEDs provide illumination while consuming less than 5 watts of electricity at all times. Battery backup system features 6 volt 4.5 amp sealed lead acid battery.
Electrical Specifications

120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v. AC lockout prevents battery pack discharge. Low voltage battery disconnect protects the battery pack form being damaged by long discharge periods.
Code Compliance

Wet Location Rated. UL924 Listed for the U.S. and Canada, CS860, NFPA, Life Safety 101, UL Listed for Damp Locations.
Warranty

Five-year warranty on parts, five-year prorated warranty on battery.
Maintenance Profile

The maintenance requiGreen/Green/Red for this unit is monthly and yearly testing of the battery backup system per OSHA regulations. The nickel cadmium battery
is replaceable.
Lifespan

8-10 year expected lifespan on all components except replaceable battery (five-year lifespan).
Options

There are no options for this model.
Technology

Battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push button testing is easy and reliable.
Appeal

Durable wet location, weatherproof construction is offeGreen/Green/Red at an affordable price.

Overall Value

This mode is a great value, it will provide reliable EXIT lighting for 8-10 years in harsh environments.

Installation

This wet location exit sign is suitable for surface (wall) installation. This model is suitable for indoor/oudoor and wet location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and white(Common) wires for 120v AC connections and the Green/Green/Red(277v) and white(Common) wires for 277v AC connections.
